Export Survey to PDF in a React Application
PDF Generator for SurveyJS allows your users to save surveys as interactive PDF documents. This tutorial describes how to add the export functionality to your React application.
If you are looking for a quick-start application that includes all SurveyJS components, refer to the following GitHub repositories:
Install the survey-pdf npm package
PDF Generator for SurveyJS is built upon the jsPDF library and is distributed as a survey-pdf npm package. Run the following command to install the package and its dependencies, including jsPDF:
npm install survey-pdf --save
Export a Survey
To export a survey, you need to create a SurveyPDF instance. Its constructor accepts two parameters: a survey JSON schema and optional PDF document settings.
To save a PDF document with the exported survey, call the save(fileName) method on the SurveyPDF instance. If you omit the fileName parameter, the document uses the default name ("survey_result").
The code below implements a savePdf helper function that instantiates SurveyPDF, assigns survey data (user responses) to this instance, and calls the save(fileName) method. If you want to export the survey without user responses, do not specify the SurveyPDF's data property.
import { IDocOptions, SurveyPDF } from "survey-pdf";
const surveyJson = { /* ... */ };
const pdfDocOptions: IDocOptions = { /* ... */ };
const savePdf = function (surveyData) {
const surveyPdf = new SurveyPDF(surveyJson, pdfDocOptions);
surveyPdf.data = surveyData;
surveyPdf.save();
};

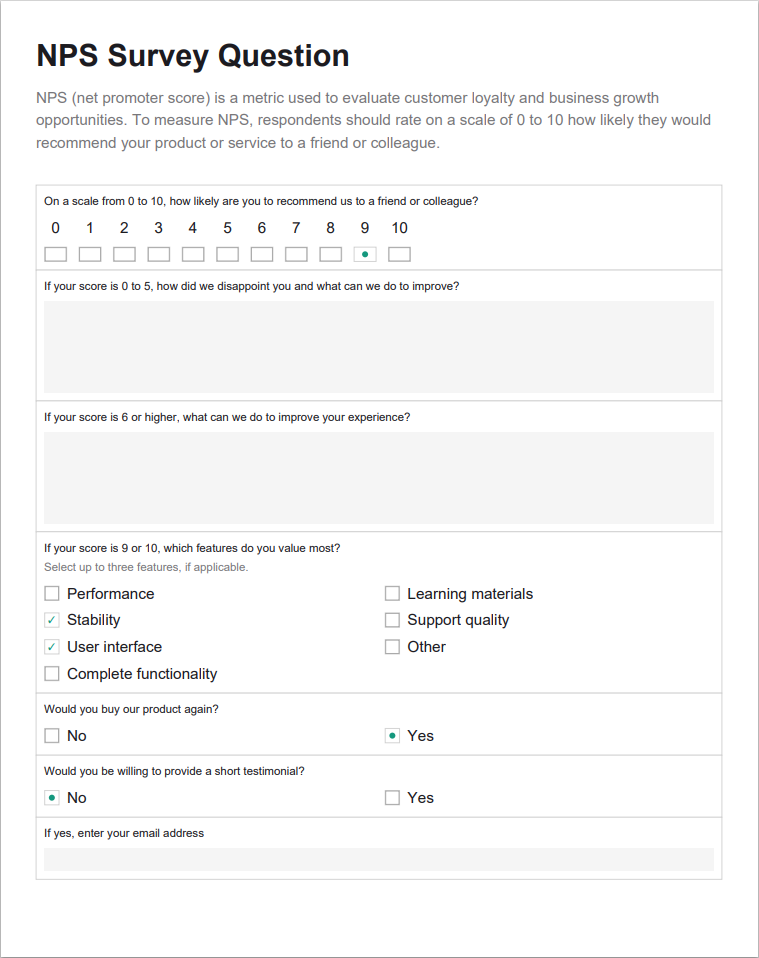

The following image illustrates a generated PDF form:
You can call this helper function from any UI element. The following example adds a custom navigation button below the survey and exports the current survey state when users click the button.
SurveyJS components are client-side components. Explicitly mark the React component that renders a SurveyJS component as client code using the 'use client' directive.
'use client'
import { Model } from 'survey-core';
import { Survey } from 'survey-react-ui';
const savePdf = function (surveyData) {
// ...
};
export default function SurveyComponent() {
const survey = new Model(surveyJson);
survey.addNavigationItem({
id: "pdf-export",
title: "Save as PDF",
action: () => savePdf(survey.data)
});
return (
<Survey model={survey} id="surveyContainer" />
);
}
The following image illustrates the resulting UI:
To view the application, run npm run dev in a command line and open http://localhost:3000/ in your browser.
Customize the PDF Form
If the default appearance of the exported form does not meet your requirements, use the following customization APIs to tailor the generated PDF document:
PDF Form Settings
Configure page orientation, fonts, compression, read-only mode, and other document-level settings.PDF Appearance Customization
Customize themes, layouts, and styles.Question Rendering
Customize the rendering behavior of specific question types.
In this tutorial, the exported PDF form uses the print-optimized Monochrome Light theme:
import { MonochromeLight } from "survey-core/themes";
const surveyPdf = new SurveyPDF({ /* ... */ });
surveyPdf.applyTheme(MonochromeLight);
View Full Code
// components/Survey.tsx
'use client'
import 'survey-core/survey-core.css';
import { Model } from 'survey-core';
import { Survey } from 'survey-react-ui';
import { IDocOptions, SurveyPDF } from 'survey-pdf';
import { MonochromeLight } from "survey-core/themes";
const surveyJson = {
"title": "NPS Survey Question",
"description": "NPS (net promoter score) is a metric used to evaluate customer loyalty and business growth opportunities. To measure NPS, respondents should rate on a scale of 0 to 10 how likely they would recommend your product or service to a friend or colleague.",
"pages": [
{
"name": "page1",
"elements": [
{
"type": "rating",
"name": "nps-score",
"title": "On a scale from 0 to 10, how likely are you to recommend us to a friend or colleague?",
"rateMin": 0,
"rateMax": 10
},
{
"type": "comment",
"name": "disappointing-experience",
"title": "If your score is 0 to 5, how did we disappoint you and what can we do to improve?",
"maxLength": 300
},
{
"type": "comment",
"name": "improvements-required",
"title": "If your score is 6 or higher, what can we do to improve your experience?",
"maxLength": 300
},
{
"type": "checkbox",
"name": "promoter-features",
"title": "If your score is 9 or 10, which features do you value most?",
"description": "Select up to three features, if applicable.",
"choices": [
{
"value": "performance",
"text": "Performance"
},
{
"value": "stability",
"text": "Stability"
},
{
"value": "ui",
"text": "User interface"
},
{
"value": "complete-functionality",
"text": "Complete functionality"
},
{
"value": "learning-materials",
"text": "Learning materials"
},
{
"value": "support",
"text": "Support quality"
}
],
"showOtherItem": true,
"otherText": "Other",
"colCount": 2,
"maxSelectedChoices": 3
}
]
},
{
"name": "page2",
"elements": [
{
"type": "boolean",
"name": "rebuy",
"title": "Would you buy our product again?"
}
]
},
{
"name": "page3",
"elements": [
{
"type": "boolean",
"name": "testimonial",
"title": "Would you be willing to provide a short testimonial?"
},
{
"type": "text",
"name": "email",
"title": "If yes, enter your email address",
"inputType": "email"
}
]
}
],
"questionsOnPageMode": "singlePage",
"headerView": "advanced"
};
const pdfDocOptions: IDocOptions = { };
const savePdf = (surveyData: any) => {
const surveyPdf = new SurveyPDF(surveyJson, pdfDocOptions);
surveyPdf.data = surveyData;
surveyPdf.applyTheme(MonochromeLight);
surveyPdf.save();
};
export default function SurveyComponent() {
const survey = new Model(surveyJson);
survey.addNavigationItem({
id: "pdf-export",
title: "Save as PDF",
action: () => savePdf(survey.data)
});
return (
<Survey model={survey} id="surveyContainer" />
);
}
// survey/page.tsx
import dynamic from 'next/dynamic';
const SurveyComponent = dynamic(() => import("@/components/Survey"), {
ssr: false
});
export default function Survey() {
return (
<SurveyComponent />
);
}
Activate a SurveyJS License
SurveyJS PDF Generator is not available for free commercial use. To integrate it into your application, you must purchase a commercial license for the software developer(s) who will be working with the PDF Generator APIs and implementing the integration. If you use SurveyJS PDF Generator without a license, an alert banner will appear at the top of each page in an exported PDF document:
After purchasing a license, follow the steps below to activate it and remove the alert banner:
- Log in to the SurveyJS website using your email address and password. If you've forgotten your password, request a reset and check your inbox for the reset link.
- Open the following page: How to Remove the Alert Banner. You can also access it by clicking Set up your license key in the alert banner itself.
- Follow the instructions on that page.
Once you've completed the setup correctly, the alert banner will no longer appear.
